组件

注册

import("../vue.study.esm.js").then((module) => {
  const { Vue } = module;
  const Tag = Vue.component('tag', {
    props: ['label'],
    render(h) {
      return h(
        'span',
        {
          attrs: {
            style: 'background: #ecf5ff; color: #409eff; border: 1px solid #d9ecff; border-radius: 4px; padding: 5px;'
          }
        },
        this.label)
    }
  });
  const app = new Vue({
    components: {
      tag2: Tag
    },
    render(h) {
      return h('div', [
        h('tag', {props: {label: 'Test'}}),
        h('tag2', {props: {label: 'Test2'}})]
      );
    },
  });
  app.$mount("#app");
});

通过断点可发现全局注册Vue.component会调用this.options._base.extend(definition)（例子中实际为Vue.extend）生成子类构造方法，并将其注册到options上this.options[type + 's'][id] = definition，即保存在构造函数的options.components中。而私有组件则mergeOptions时直接保存在对象vm.$options中。

// src/core/global-api/assets.ts
ASSET_TYPES.forEach((type) => {
  // @ts-expect-error function is not exact same type
  Vue[type] = function (
    id: string,
    definition?: Function | Object
  ): Function | Object | void {
    if (!definition) {
      return this.options[type + 's'][id]
    } else {
      /* istanbul ignore if */
      if (process.env.NODE_ENV !== 'production' && type === 'component') {
        validateComponentName(id)
      }
      if (type === 'component' && isPlainObject(definition)) {
        // @ts-expect-error
        definition.name = definition.name || id
        definition = this.options._base.extend(definition)
      }
      if (type === 'directive' && typeof definition === 'function') {
        definition = { bind: definition, update: definition }
      }
      this.options[type + 's'][id] = definition
      return definition
    }
  }
})


// src/core/global-api/extend.ts
/**
 * Class inheritance
 */
Vue.extend = function (extendOptions: any): typeof Component {
  extendOptions = extendOptions || {}
  const Super = this
  const SuperId = Super.cid
  const cachedCtors = extendOptions._Ctor || (extendOptions._Ctor = {})
  if (cachedCtors[SuperId]) {
    return cachedCtors[SuperId]
  }

  const name = extendOptions.name || Super.options.name
  if (process.env.NODE_ENV !== 'production' && name) {
    validateComponentName(name)
  }

  const Sub = (function VueComponent(this: any, options: any) {
    this._init(options)
  } as unknown) as typeof Component
  Sub.prototype = Object.create(Super.prototype)
  Sub.prototype.constructor = Sub
  Sub.cid = cid++
  Sub.options = mergeOptions(Super.options, extendOptions)
  Sub['super'] = Super

  // ...省略

  return Sub
}

创建实例

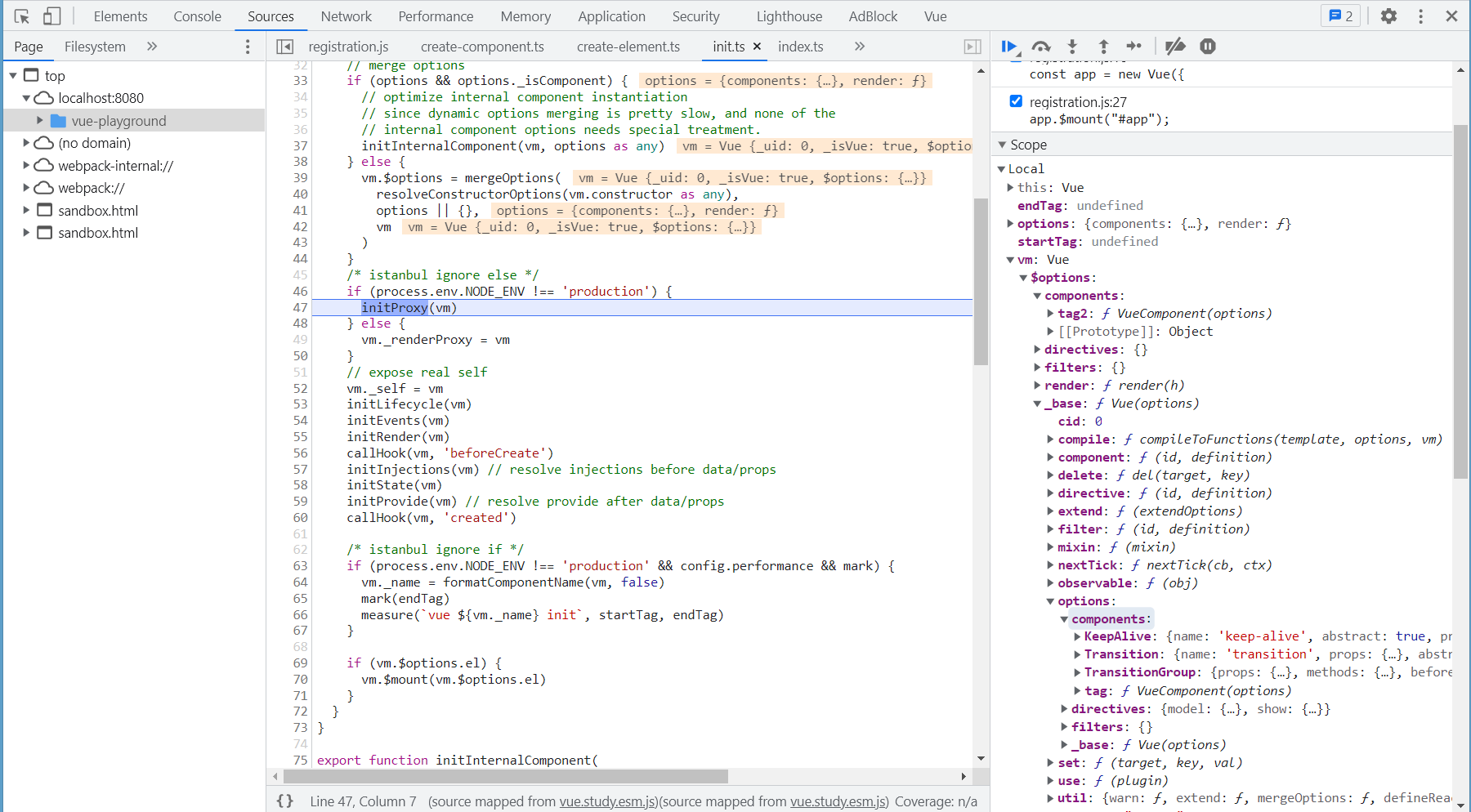

在组件构造方法中打好断点，观察组件构建流程。回溯调用过程可知渲染_render创建的vnode中包含了组件的构造函数和相关参数，在__patch__时调用组件构造方法创建组件实例（带_isComponent参数）。在createComponent创建vnode时使用installComponentHooks(data)在vnode.data上绑定了init钩子，这个钩子里有创建组件实例及mount实例的代码。

init(vnode: VNodeWithData, hydrating: boolean): boolean | void {
  if (
    vnode.componentInstance &&
    !vnode.componentInstance._isDestroyed &&
    vnode.data.keepAlive
  ) {
    // kept-alive components, treat as a patch
    const mountedNode: any = vnode // work around flow
    componentVNodeHooks.prepatch(mountedNode, mountedNode)
  } else {
    const child = (vnode.componentInstance = createComponentInstanceForVnode(
      vnode,
      activeInstance
    ))
    child.$mount(hydrating ? vnode.elm : undefined, hydrating)
  }
}
